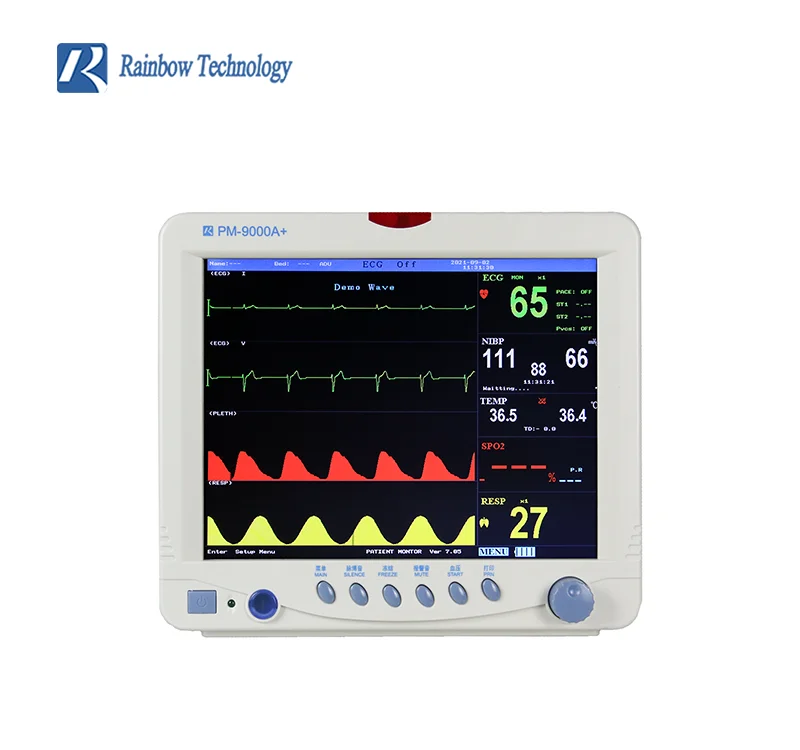

Rainbow 12.1 inch PM-9000A+ clinical multiparameter portable vital signs monitor is designed for adults,pediatric,and neonatal.This one sell well in market,which is handheld patient monitor from china.
Using Standard: meet the ANSI / AMI EC13 -2002 standard
Preset heart rate range: (Alarm over preset numerical)
Ceiling: 1-255 bpm adjustable
Threshold: 0-254 bpm adjustable
RESP
Breathing frequency range: 0-60 bum
Accuracy: ± 1rpm
Alarm range: (numerical preset alarm over)
Ceiling: 10-100 bpm adjustable
Threshold: 0 -99 bpm adjustable
NIBP
Technology: Oscillometric
Mode: manual / automatic
A measurement time: less than 45 S
Inflatable cuffs: 180 mmHg (120 mmHg children newborn 70 mmHg)
Blood pressure measuring range:
Systolic blood pressure: 60-250 mmHg
Diastolic blood pressure: 40-220 mmHg
Pressure on the average: 45-235 mmHg
Spo2
Range: 0-100%
Accuracy: 1%
Resolution: 1%
Pulse frequency: 20-250 times / min
Response time: 1s
Alarm: Sound and Light
TEMP
Technology: thermostat temperature probe
Measuring range: 20 ° C-45 ° C
Temperature resolution: 0.1%
Accuracy: ± 0.1 ° C
Printer(apolegamy)
Specification: Dual channel thermal array data recorder
Print mode: Real time or event triggered record waveform and text
Accuracy:4oodpi 800dpi
Annotation: time(24)
System
Screen:12.1 inches TFT screen of LCD
Battery: lead acid(14.8v 2600mah)
Safety standard: lec601-1(GB9706.1)
power:220v 50Hz
operation:Jog shuttle
Company Information
Hunan rainbow medical system co,.ltd is a professional manufacturer of patient monitor for over 19 years.
Our products sell well across china and abroad. Popular products (multi-parameter monitor) have occupied
50% above of domestic market share. Company sticks to customer demand orientation, and pursue the goal
of customer satisfaction as service principle.
Packaging & Shipping
What is our advantages?
1. We are manufacturer with 19 years experience. You can get our promise of cost- effective and good quality products.
2. We have professional technician and after- sale group. Best service you can get.
3. We have strict quality control system and enjoy good reputation in the market.
4.OEM is accepted : you can print your own logo on the products.
FAQ
1.What is the warranty?
The free warranty is two years for the main machine and 3 months for accessaries, which means we support free replacement in warranty time if here has any quality fault for our products.
